Information

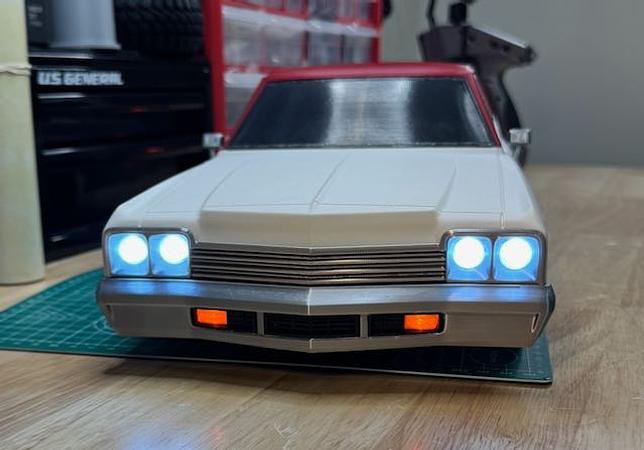

RC 1/10 Monaco - 74
Body based on Monaco 1974
49 pieces
Functional headlights, taillights and blinker: LEDs 5mm/3mm
**Assembled Size:**
Length: 560 mm
Width: 204 mm
Height: 138 mm
**Wheelbase: 308 mm**
You need:
-55- [M3 or 1/8 in. screw maximum length 12 mm ](https://a.co/d/0d2xLylE)
-4- Round magnets 12 x 3mm / 0.47 x 0.12 inches
**The use of adhesive can be helpful with small parts.**
This bodywork is compatible with Free! Chassis 1/10 Adaptable - DKS-Basic by dukedoks
Many thanks to @dukedoks for letting me use his Chassis.
**Use authorized by dukedoks**
The design only includes the RC 1/10 Monaco 1974 and tires.
**Chassis not included**
49 pieces
Functional headlights, taillights and blinker: LEDs 5mm/3mm
**Assembled Size:**
Length: 560 mm
Width: 204 mm
Height: 138 mm
**Wheelbase: 308 mm**
You need:
-55- [M3 or 1/8 in. screw maximum length 12 mm ](https://a.co/d/0d2xLylE)
-4- Round magnets 12 x 3mm / 0.47 x 0.12 inches
**The use of adhesive can be helpful with small parts.**
This bodywork is compatible with Free! Chassis 1/10 Adaptable - DKS-Basic by dukedoks
Many thanks to @dukedoks for letting me use his Chassis.
**Use authorized by dukedoks**
The design only includes the RC 1/10 Monaco 1974 and tires.
**Chassis not included**
Technical
Minimum print area tested, 220 x 220 x 250 mm / 8,6" x 8,6" x 10,6" inches
Resolution: 0.2mm
Perimeters: 3
Bottom layers: 3
Top layers: 4
Infill: 10%
Supports: Organic or Tree
Adhesion: Use raft or additional supports if you have adhesion issues.
Using low speeds reduces printing defects, it is recommended to use less than 50% of the total speed of your machine.
If you plan to do post-processing of the paint, use 4 or more perimeters
Flexible Tires:
**TPU**
Low speed: approximately 20mm/s
Perimeters: 3
Lower layers: 3
Upper layers: 5
Filling: 0%
Adhesion: No
Resolution: 0.2mm
Perimeters: 3
Bottom layers: 3
Top layers: 4
Infill: 10%
Supports: Organic or Tree
Adhesion: Use raft or additional supports if you have adhesion issues.
Using low speeds reduces printing defects, it is recommended to use less than 50% of the total speed of your machine.
If you plan to do post-processing of the paint, use 4 or more perimeters
Flexible Tires:
**TPU**
Low speed: approximately 20mm/s
Perimeters: 3
Lower layers: 3
Upper layers: 5
Filling: 0%
Adhesion: No
