ESC 6x6 MK1 "Six Claw 6x6" _1/10 RC Body and Chassis

Additional files

  • Dashboard.pdf View
  • Non 3d-printed parts list_ESC 6x6.pdf View

Printable files

  106 files View
  1 archive View
KIT

ESC 6x6 MK1 "Six Claw 6x6" _1/10 RC Body and Chassis

Published at 2025-03-13
$54.00
★ ★ ★ ★ ☆ (0 comments)
779
90% goes to the Creator (excluding payment processing fees)
Creator Avatar

Elvis RC Studio

15 objects 42 Followers
Joined 8 months ago South Korea

the place that make RC car with passion and challenge

Description

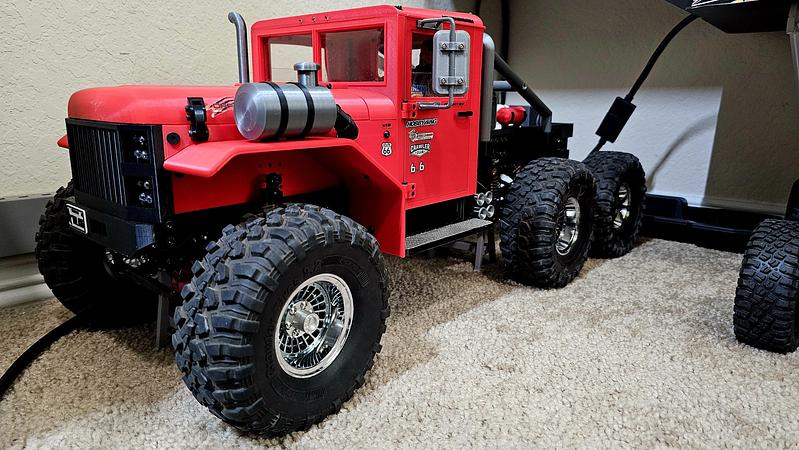

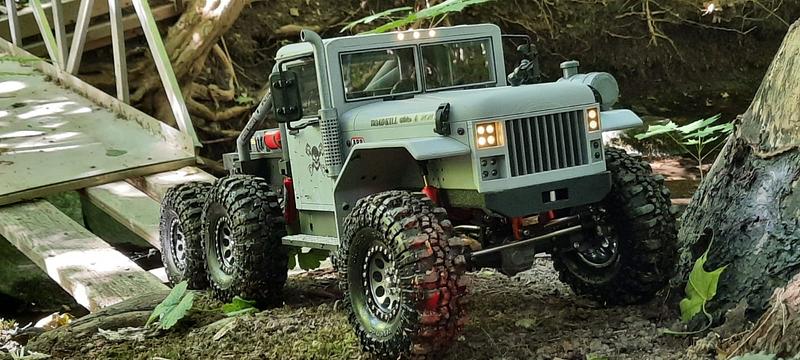

The ESC 6x6 MK1 "Six Claw 6x6" is a 1/10 scale six-wheel all-terrain vehicle based on a coil suspension system

This model is designed with the concept of a vintage truck customized into a rugged off-road leisure vehicle, emphasizing its unique and distinctive design.


Design Features

  • Optimized Size: Designed to stay within 600mm in length when 3D printed, ensuring it is not excessively large compared to a standard 1/10 scale 4WD vehicle.

  • Excellent Climbing Performance: The front bumper protrusion is minimized, achieving 90-degree approach and departure angles, which enhances performance and fun in rock crawling.

  • Detailed Accessories Included: The fire extinguisher, fuel tank, air tank, air manifold, air horn, and all other visible accessories in the images are included in the data package.

  • Functional Elements: The doors and hood can be opened and closed, with a locking mechanism included.


Battery & Expandability

  • The battery tray comes in three different sizes, allowing compatibility with various batteries.

  • When using the small battery tray, a sound module can be installed inside the engine bay, which is available as an optional part.

  • The shock mounts feature multiple mounting holes, allowing for easy adjustment without the need to remove additional parts, enabling direct and intuitive positioning.


Elvis RC follows a development philosophy of "easy printing, enjoyable assembly, strong durability, and unique design," and the "Six Claw 6x6" perfectly embodies these principles.

To print this model, a 3D printer with a build volume of at least 220×220×220mm is required

https://youtu.be/_KhrOYQUETs - assembly manual video
https://youtu.be/0qodm6FxeGM - Driving footage

vehicle Specifications
 575 x 218(
Excluding Mirrors) x 193 (height) - Only the 3D-printed body and chassis

Wheelbase
330mm_Middle axle
480mm_Rear axle


The Elvis RC Community is hosted on a Facebook group, providing a space to ask and answer questions related to assembly.
In this group, you can explore other builders' creations, share ideas, and connect with fellow enthusiasts.
Join us to gain insights and enjoy the fun of building RC cars together!
0.4mm nozzle
 0.15mm layer height
 bed temp: 50℃
 nozzle temp: 230-240℃
 top and bottom: 5 layer
 wall: 2.0mm
 fill: 40%
