16mm pnp tape feeder with stepper (test phase)
By Spikee
at 2024-05-03

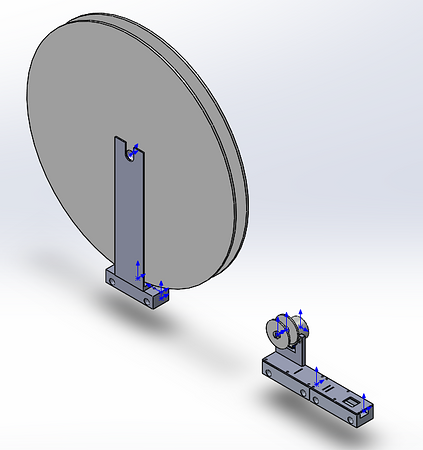

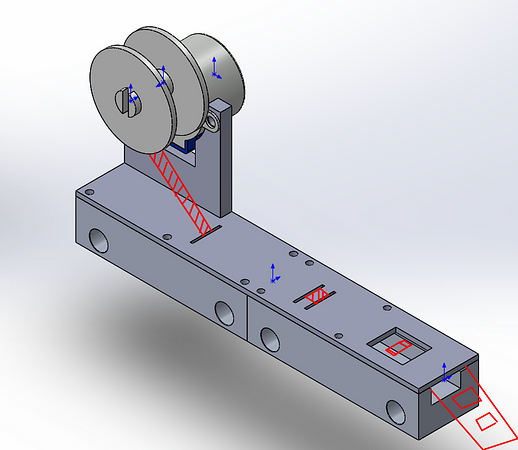

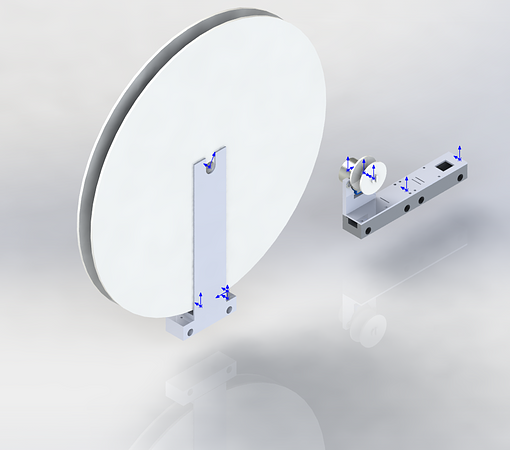

DIY pnp feeder for 16 mm tape.Stepper motor used:28BYJ-48Details here:http://liteplacer.com/phpBB/viewtopic.php?f=11&t=7&p=840#p840
Technical
28BYJ-48 stepper motor.
It is 2$ on ebay with wires and driver.
Tolerances on the 36mm tape spool to fit the stepper shaft are not tested. Some force might be needed.

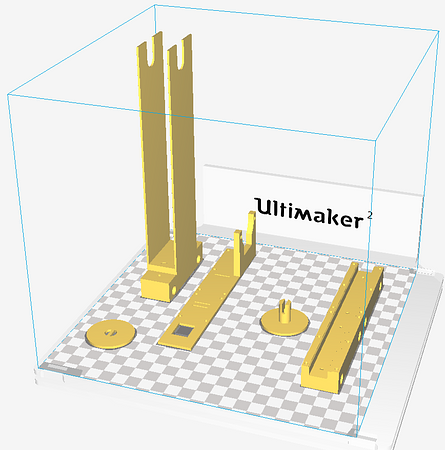

Rest is 3d printed
